The thermostat is now a separate item
This kit used to bundle the Improved Racing FSC-165°F thermostat as an option. It was priced at exactly what the thermostat costs on its own, so nothing changes for you except that you now pick it from its own listing — with the full choice of temperature and fittings instead of the single 165°F/8AN combination this kit offered. We still recommend running one.
Transmission Cooler Kit for BMW E9x E8x 6HP21 6HP19 - N54 N55 Gas
Complete 19 Row Radiator Mounted Cooler Kit
DIY Kit Installation Requirements
Delete OEM Cooler & Cap/Plug Coolant Feed Locations.
Modify or remove OEM Kidney Grille Duct Panel for cooler fitment.

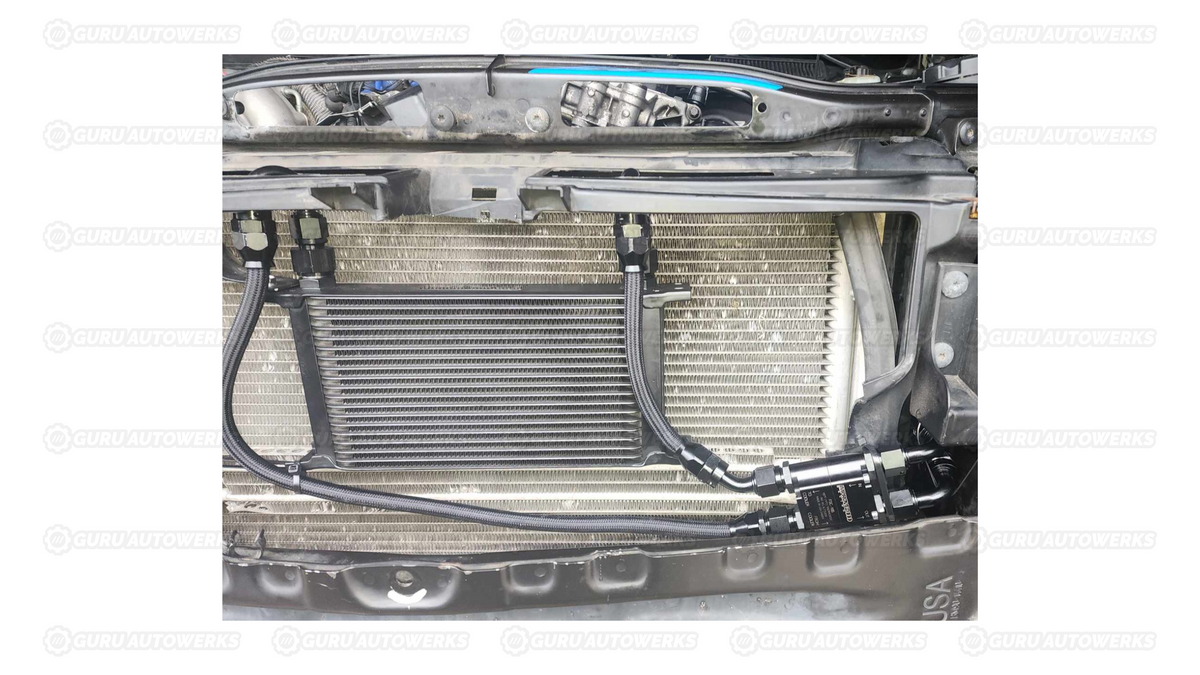

Mount Cooler, Thermostat & AN Transmission Adapter Block.
Measure, mock fit and fabricate your own PTFE Line assemblies.
Route, secure lines, perform fluid fill procedure & leak test.
Components

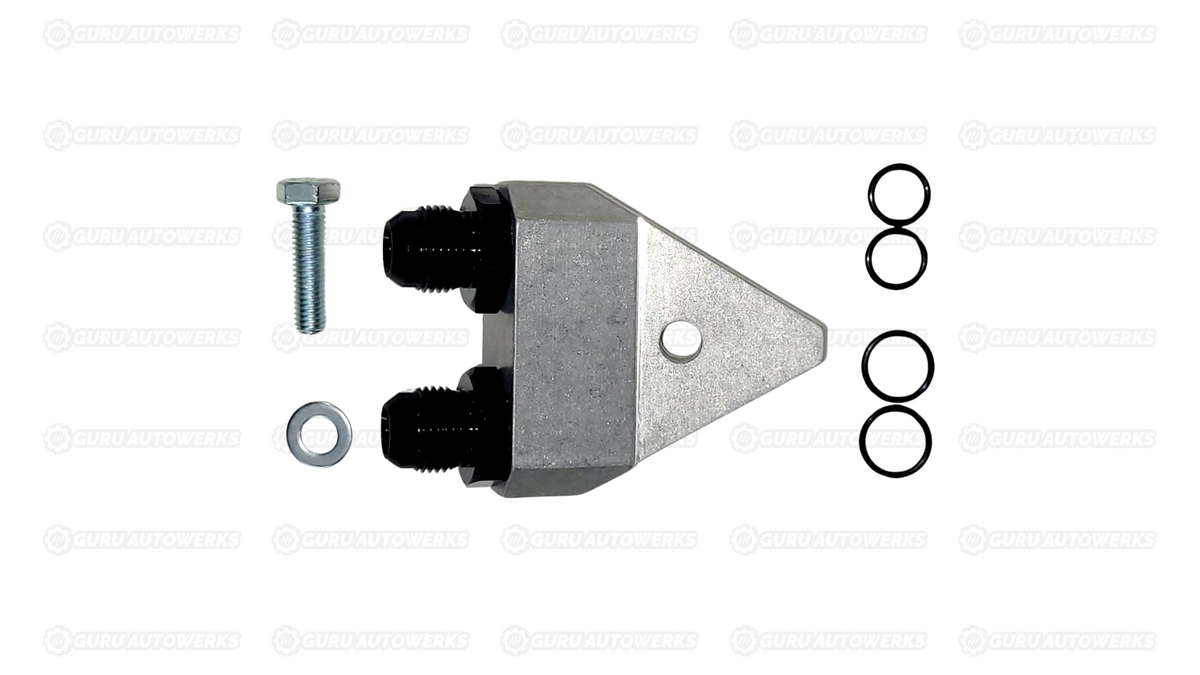

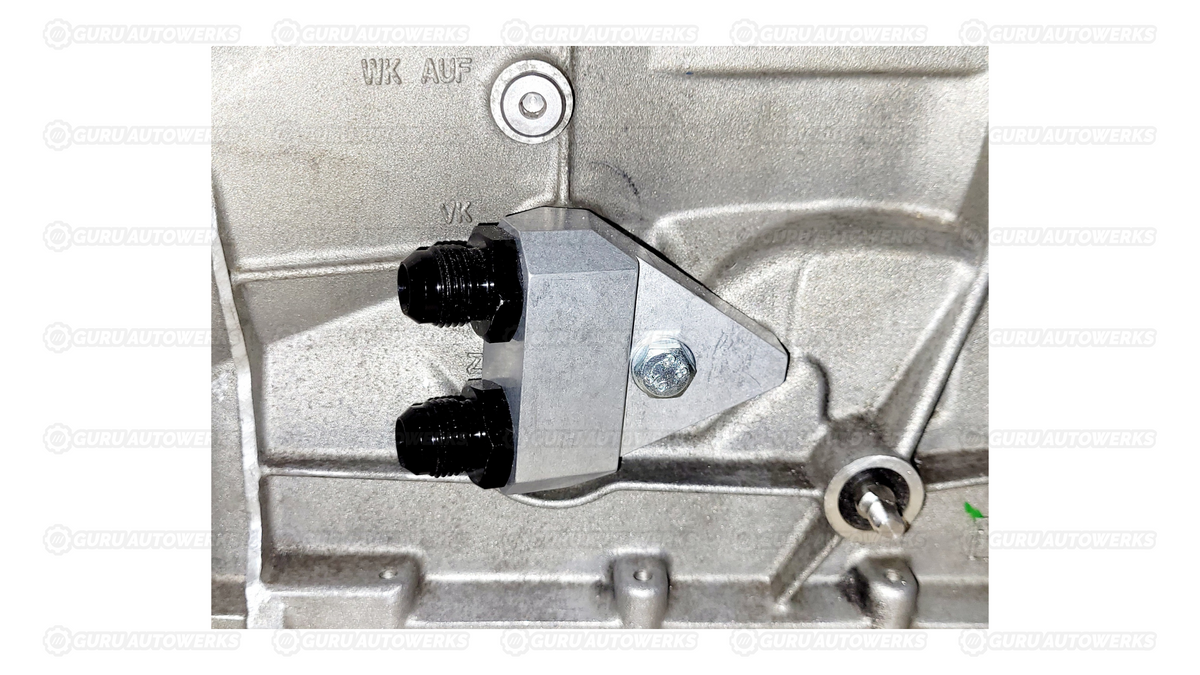

-8AN 6HP21 Transmission Cooler Adapter - Low Profile

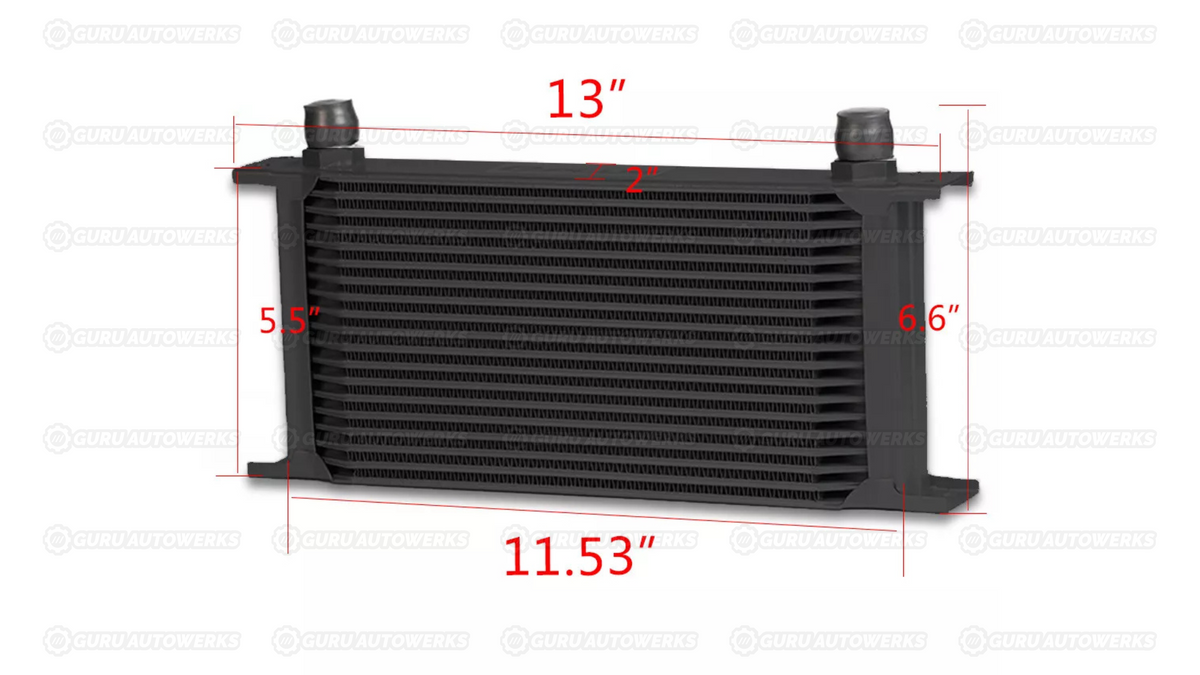

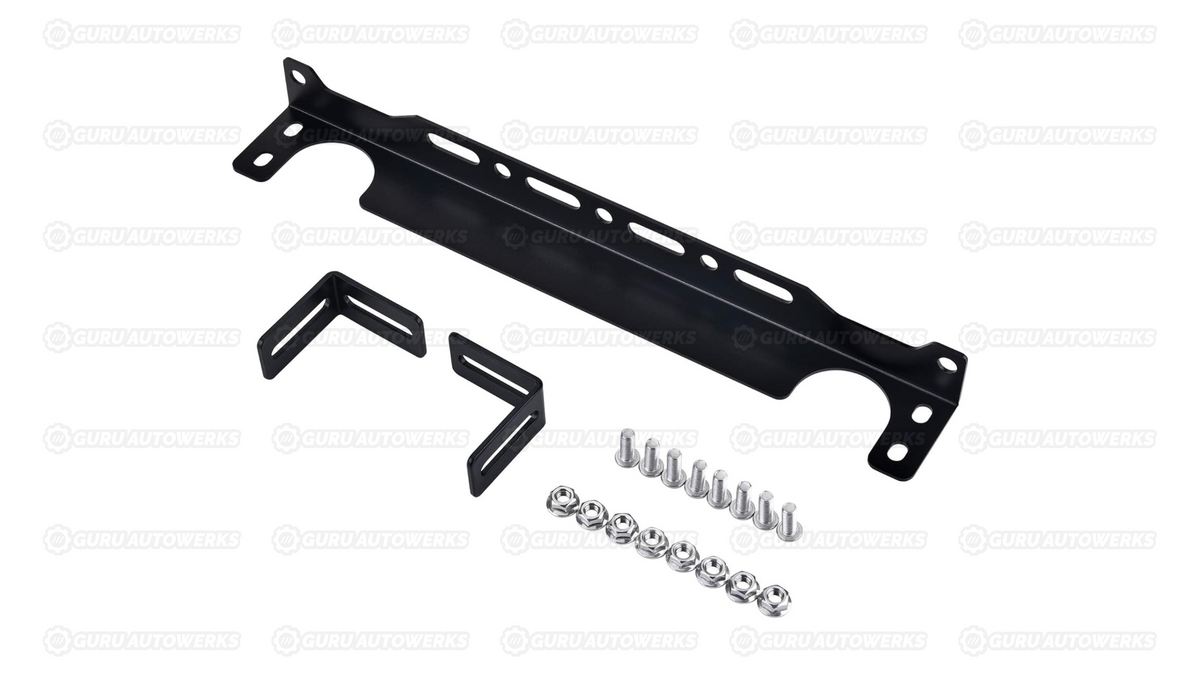

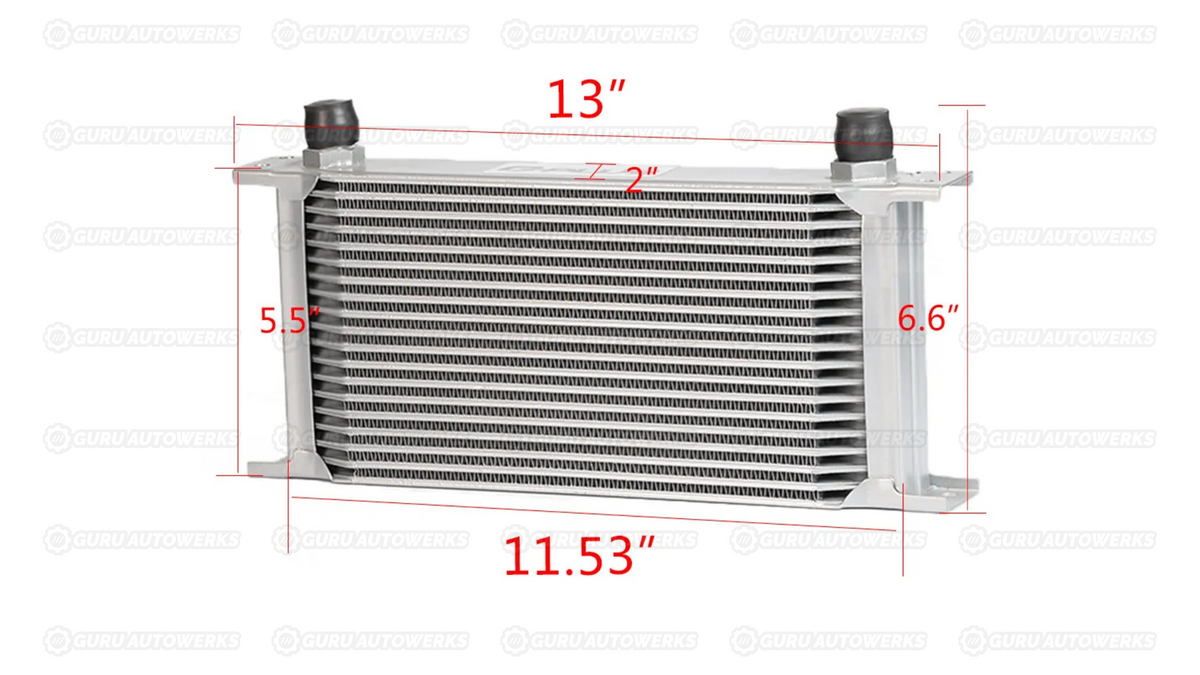

-10AN 19 Row Oil Cooler w/Universal Bracket - Black or Silver

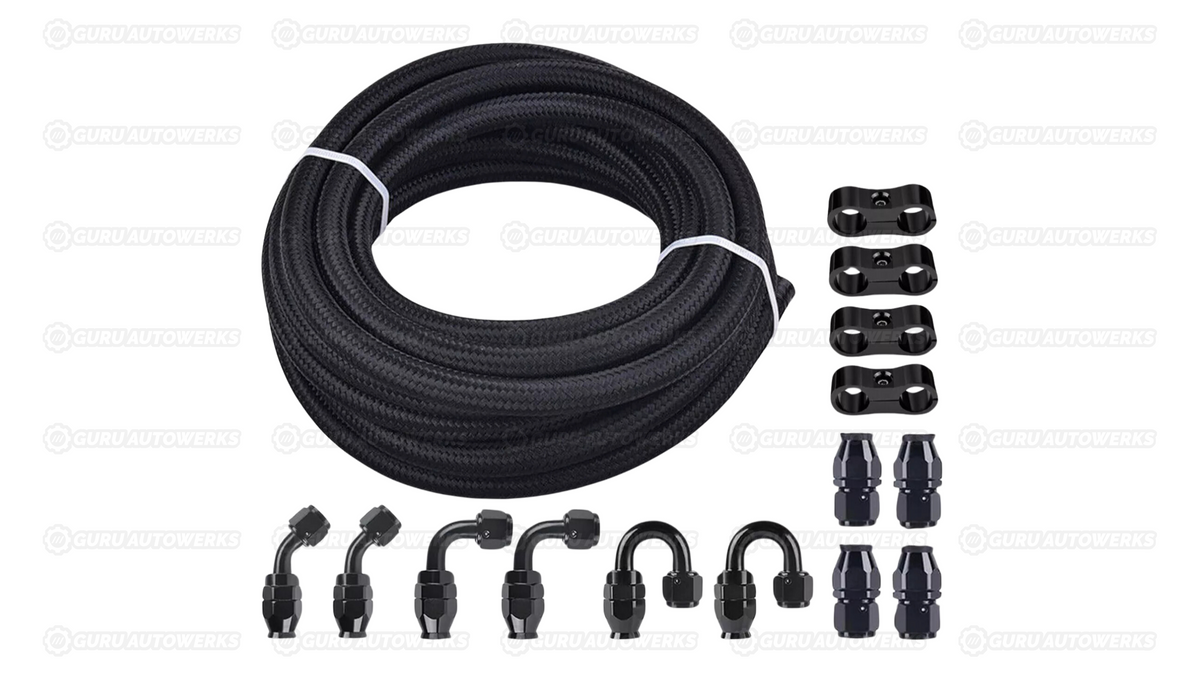

-8AN PTFE 20ft Line Kit w/10 Fittings, 4 Separator Clamps

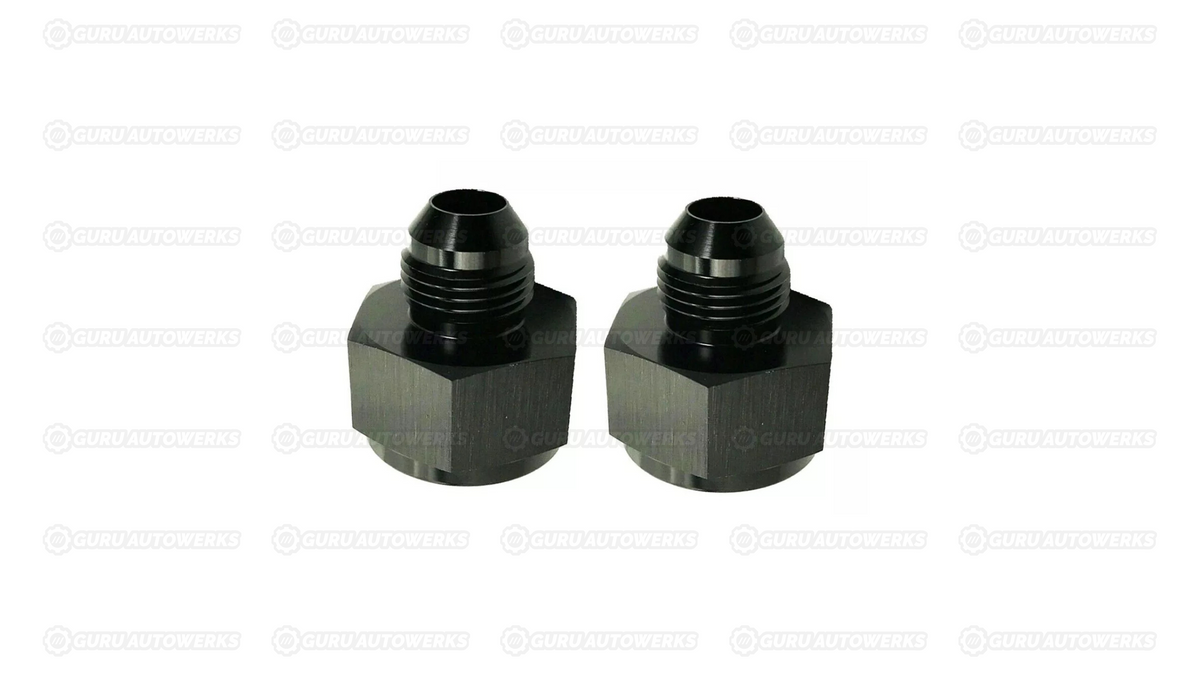

-10AN to -8AN Reducers (2) - Reduces cooler to -8AN
E9x/E8x A/T Radiator Coolant Port Plug - Billet Plug w/O-Rings

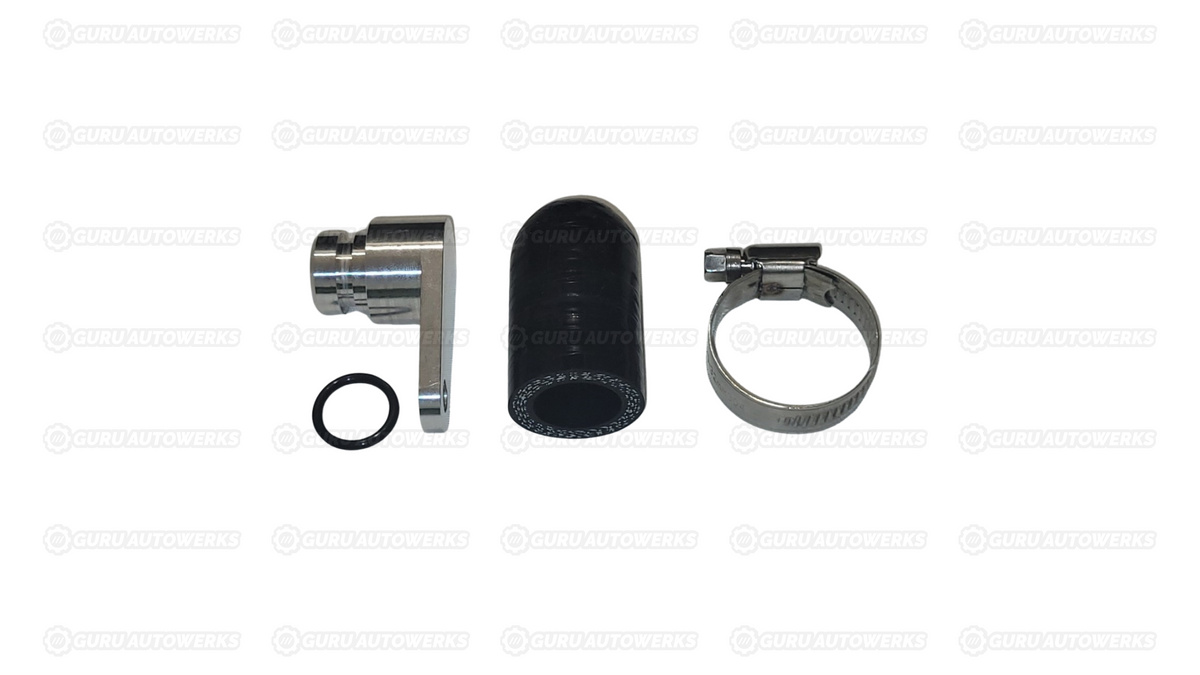

E9x/E8x A/T Coolant Crossover Cap - Hi-Temp Silicone Cap w/Clamp
Thermostat Option

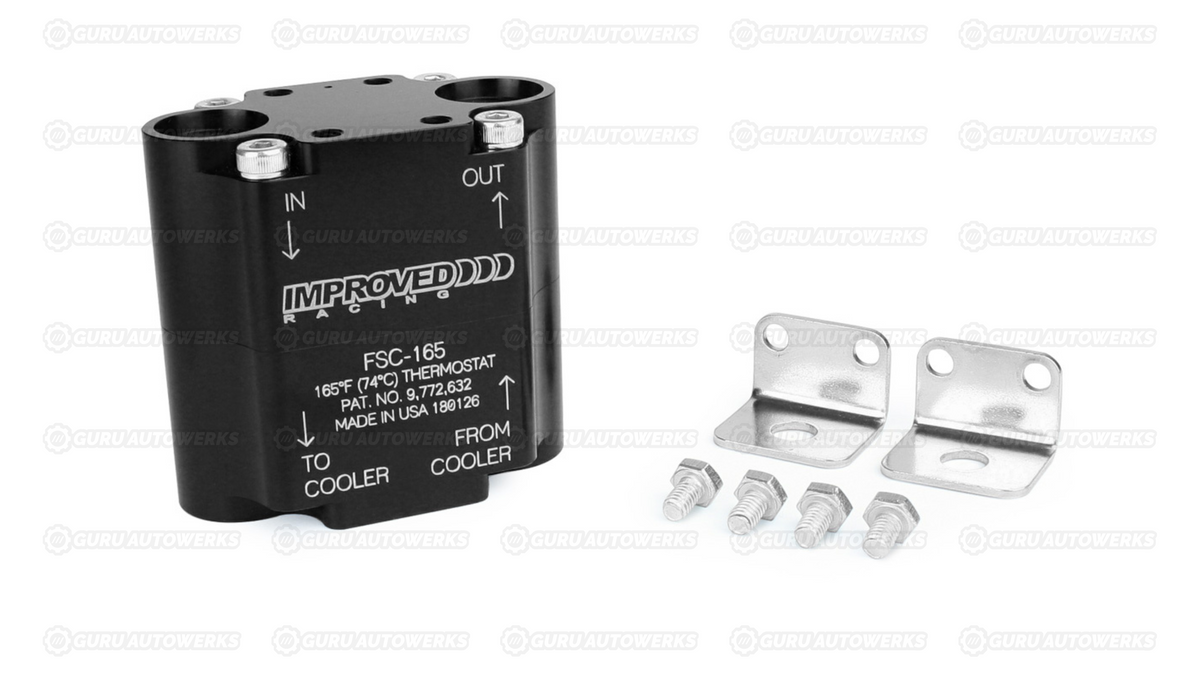

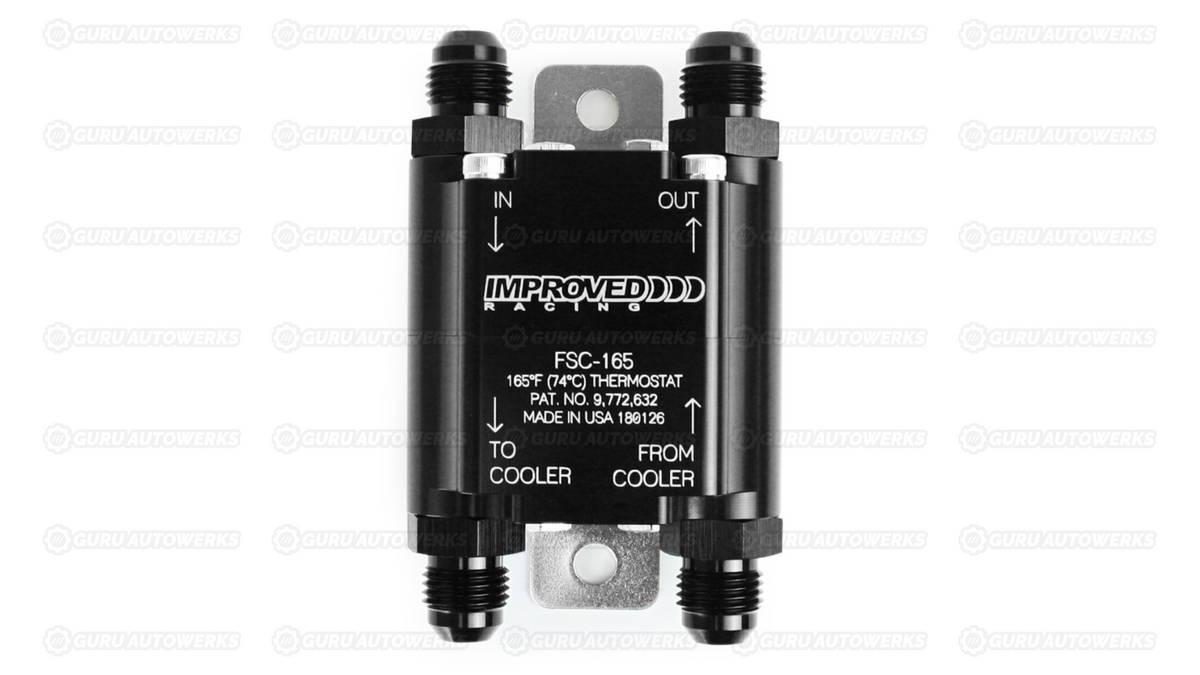

-8AN Improved Racing FSC-165 Compact Inline Thermostat 165°F
Radiator & Coolant Crossover - If unsure, request our assistance.
*Vehicles with Manual Radiator and/or Coolant Crossover Pipe
may opt out of purchasing E9x/E8x A/T Radiator Plug & Crossover Cap*
For other applications please contact us before purchase.
[ ! ] Our E9x, E8x and E6x kits are well established. The F3x · F2x and E7x applications are less settled — the F-series varies between models (335, 340, 435, 440 and similar), which changes the component list. The photos on this listing may not show the exact components for those applications yet.
Send us your details before you order
There is more than one version of this kit depending on the exact car, and the part numbers are not always what the model year suggests. Rather than guess, we check it against the factory diagram for your vehicle.
What we need:
- Your model and vehicle details — e.g. 2013 335i xDrive, 8HP45
- The last 7 digits of your VIN
We look your car up on the OEM part diagrams and confirm exactly which components ship before you pay. It takes us a few minutes and it is the difference between the right parts arriving and a return.
[ ! ] A field for this is coming on the product page itself. Until then, send it in a message with your order and we will confirm before we ship.
